PRODUCTS

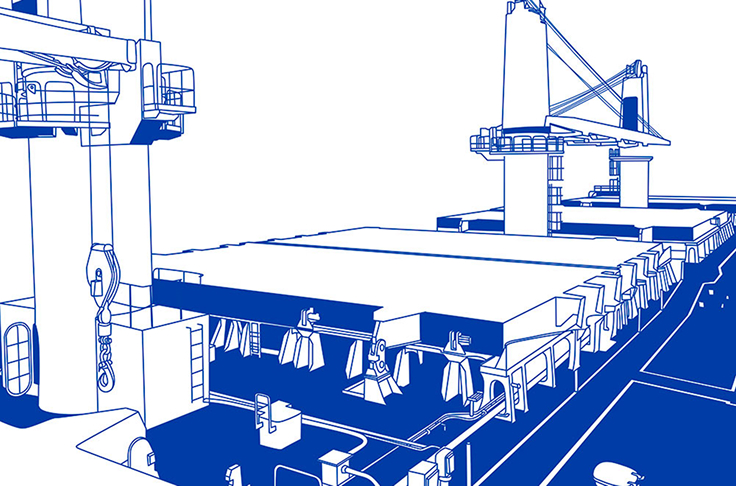

Deck closing system for Cargo Hold.
Type of Hatch Cover acc. to ship design.

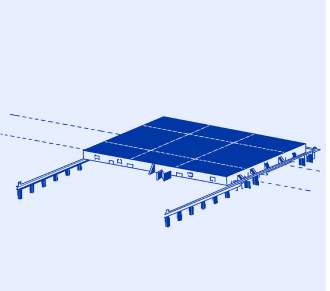

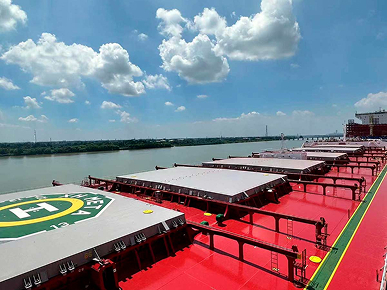

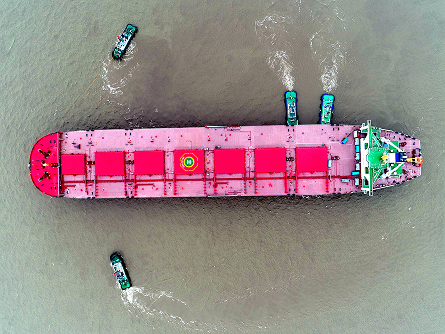

One or two panels will be lifted-up and roll on track way to the vessels‘ side
Various modes and types are available. Electric – driven panels are available as well.

Application: Bulk Carriers / VLOC / OBO

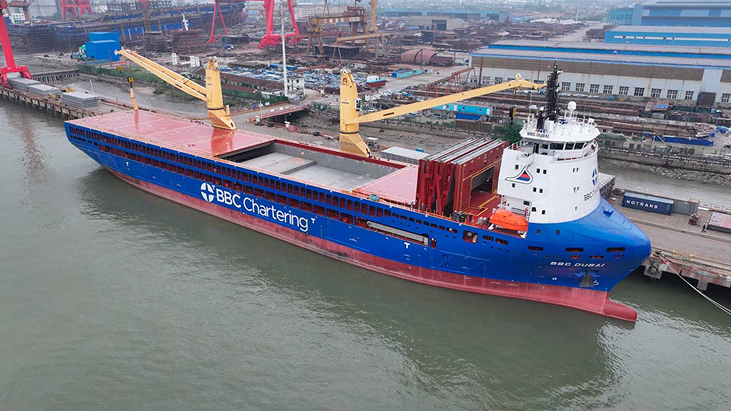

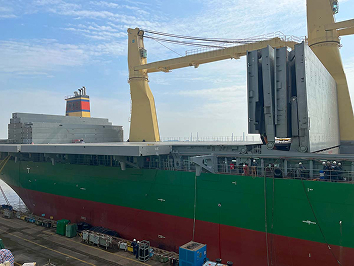

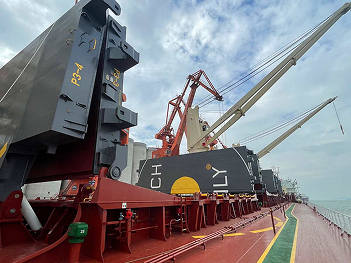

Single folding pairs and Multi-folding pairs are available.
Folding pair, operated by external hydraulic cylinders attached to the end arms at hold end.
Multi-folding pairs consist of an end-folding pair connected to one or two trailing pair(s).

Application: Bulk Carriers / Containerships / Multi-Purpose Vessels / General Cargo Ships

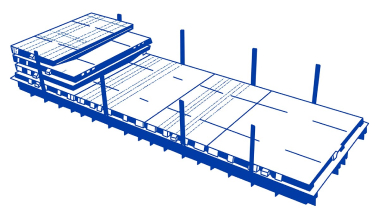

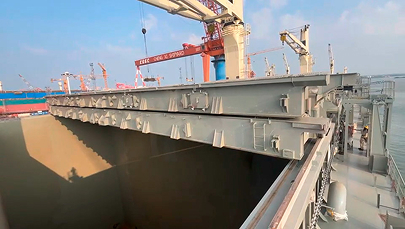

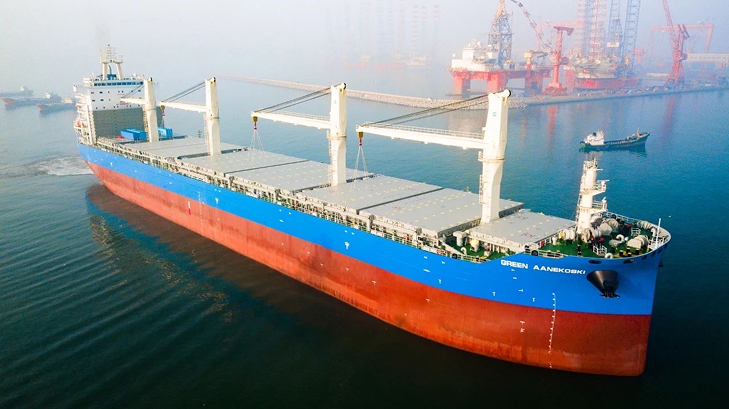

Panels will be lifted / stacked on top of each other and roll on track way in longitudinal direction.

Application: Multi-Purpose Vessels

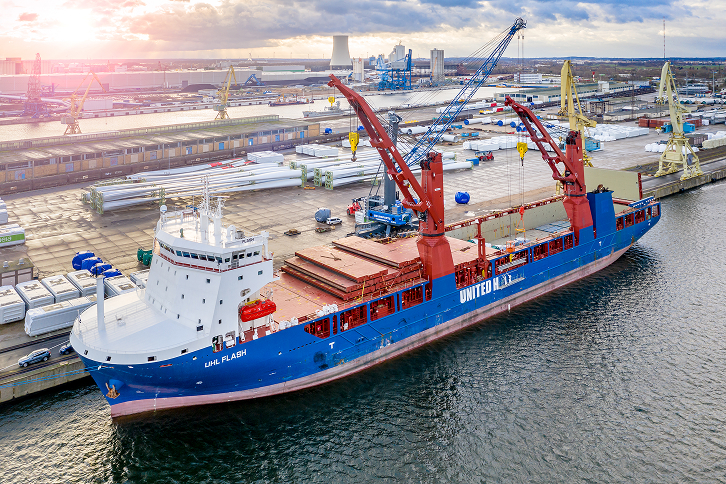

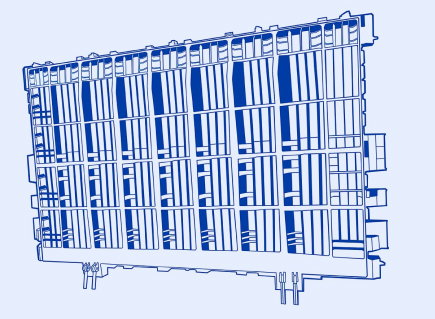

Single panel (pivot-type), operated by external hydraulic cylinders attached to the end arms at hold end.

Application: Small Containerships / Multi-Purpose Vessels

Panels to be lifted on/off by crane (via Spreader or Lifting Gear).

Application: Containerships / Multi-Purpose Vessels (weatherdeck and/or tweendeck)

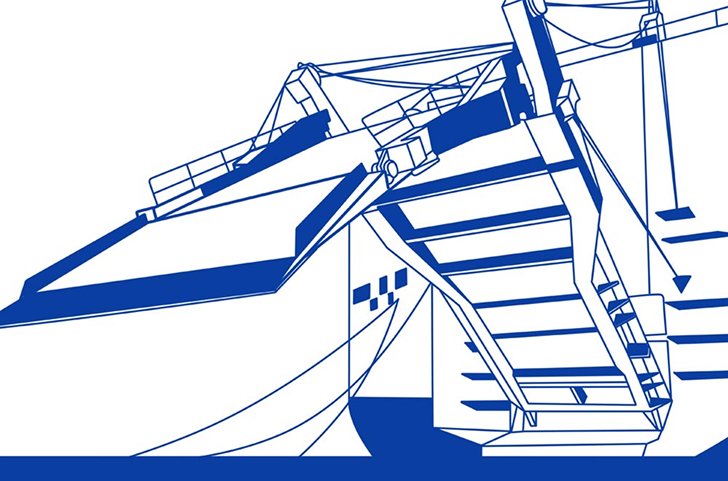

Access Equipment like ramps, doors, covers and hoistable decks for rolling cargoes.

Most of the equipments are available with fully electric-drive as well!

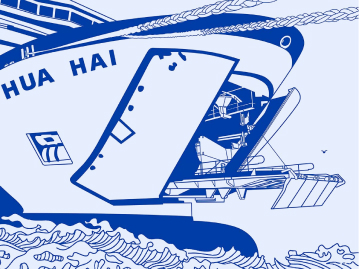

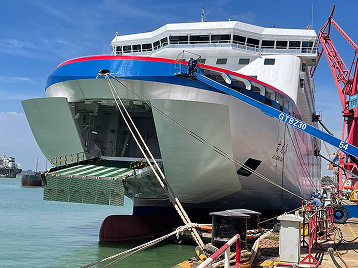

Side swinging bow door consisting of two shell sections. When opened, the folding ramp behind the bow door can spread out and lay onto the quay as a passage.

Application: RoRo / RoPax / Ferries

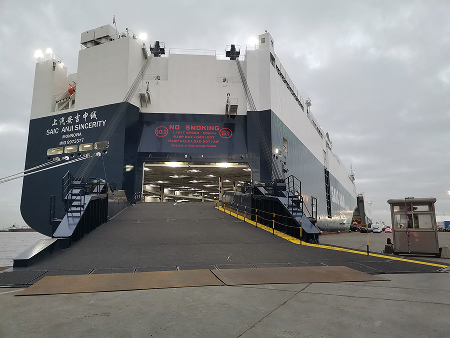

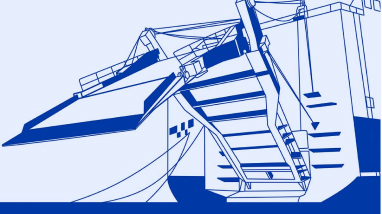

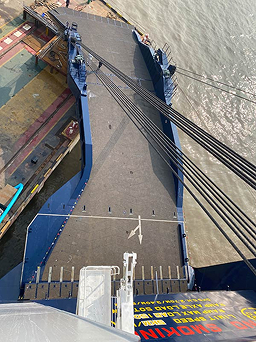

Cargo access to the vessel suitable for all type of vehicles.

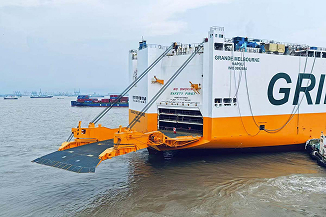

Fits to the vessels‘ quarter part and connects the ship with the quay.

Application: PCTC

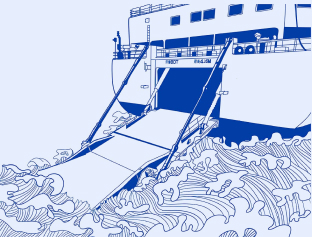

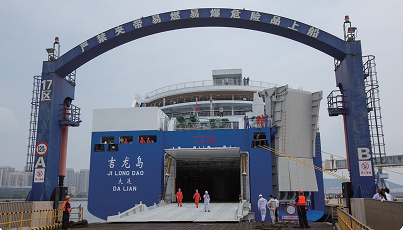

Cargo access to the vessel. Fits to the vessels‘ stern part and connects the ship with the quay or sea.

Application: RoRo / RoPax / Ferries

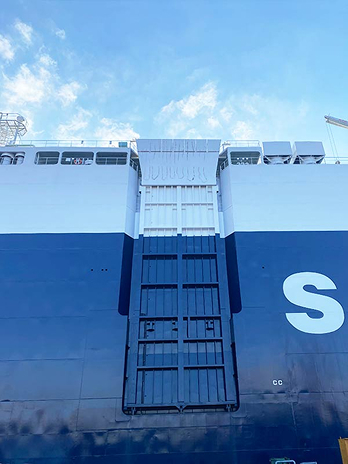

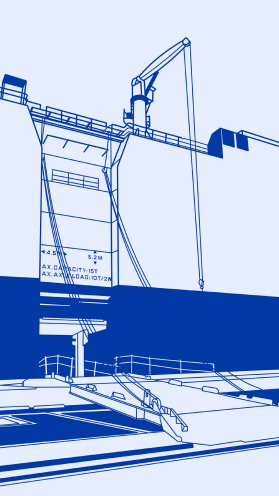

Ramp located at side shell of the vessel suitable for cars, lorries and forklifts.

Application: PCTC

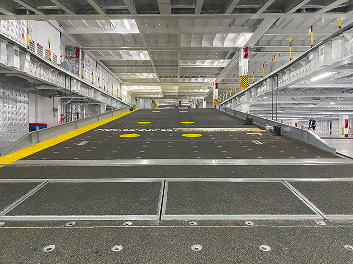

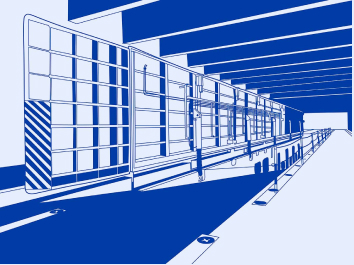

End-hinged ramp between two decks with end/side-hinged cover on deck level.

Application: PCTC / RoRo

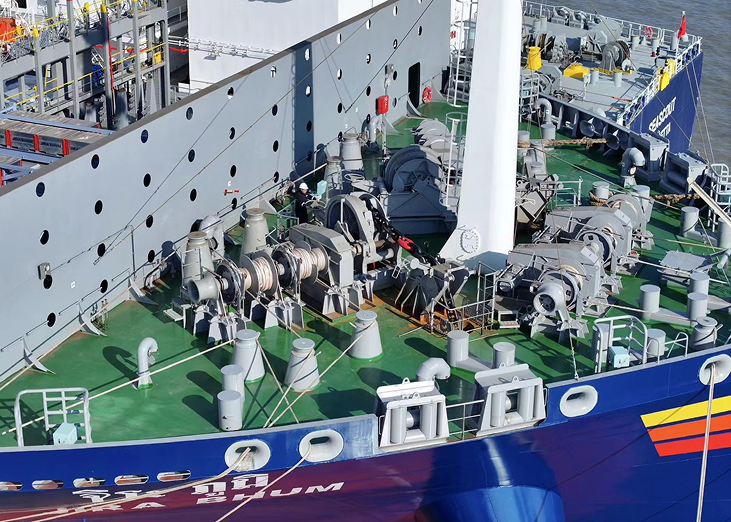

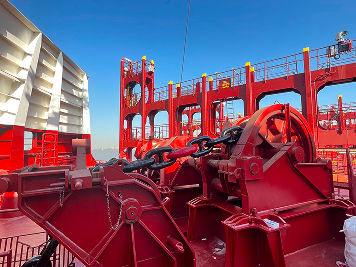

Windlasses and mooring winches apply for all kind of vessels.
Windlass with chain diameter ranging from 42 mm to 152 mm.
Mooring winches with nominal force ranging from 100 kN to 500 kN.

Optional specification include :

• Remote control
• Chain length indicator
• Auto-tension function
• OCIMF rules recommendation
• Built-in electro-hydraulic winch incl. foundation (Plug & Play)

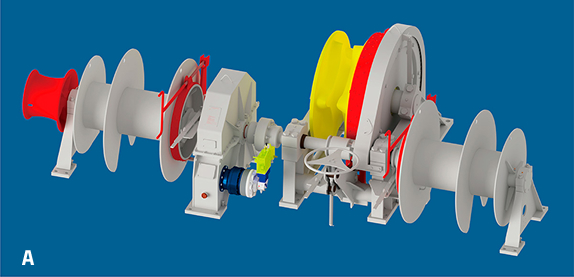

High pressure hydraulic driven system.
A) Combined windlass and mooring winch

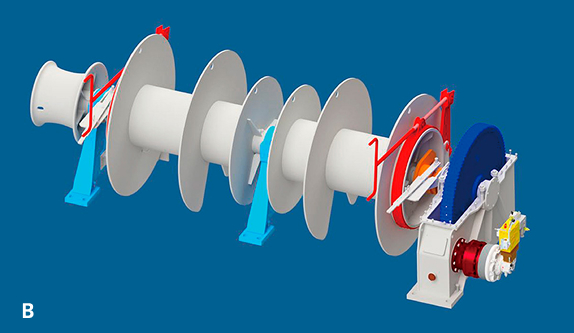

B) Mooring winch

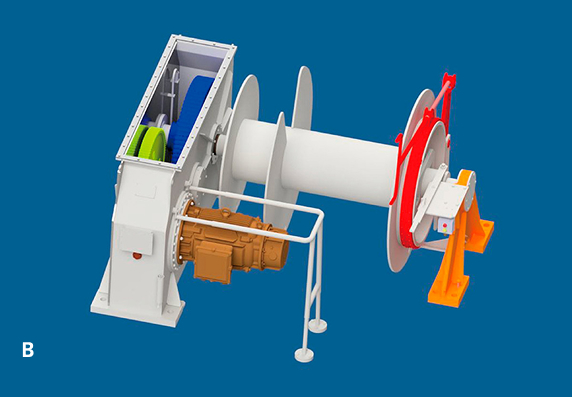

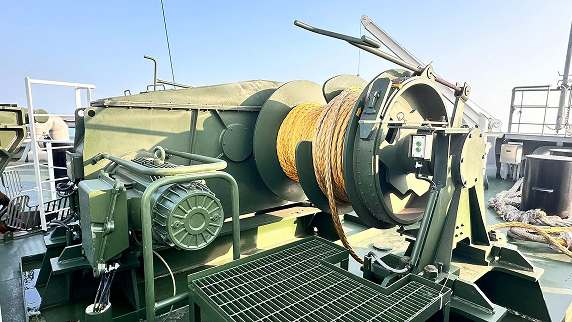

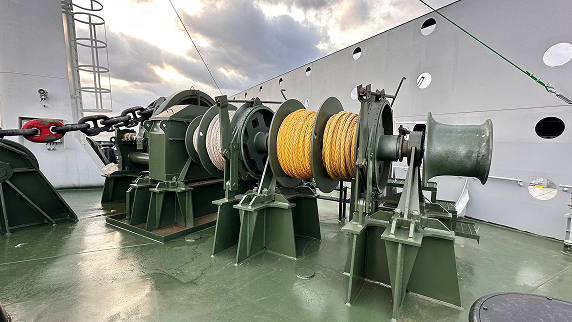

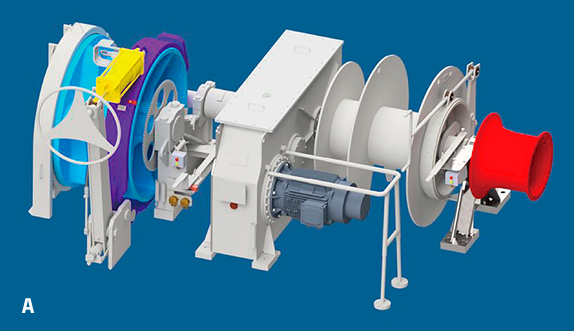

Electric driven system with 3 steps pole-changeable type or frequency converted type.

A) Combined windlass and mooring winch
B) Mooring winch

Windlasses and mooring winches apply for all kind of vessels.
Windlass with chain diameter ranging from 42 mm to 152 mm.
Mooring winches with nominal force ranging from 100 kN to 500 kN.

Windlasses and mooring winches apply for all kind of vessels.
Windlass with chain diameter ranging from 42 mm to 152 mm.
Mooring winches with nominal force ranging from 100 kN to 500 kN.

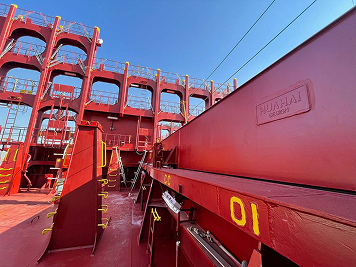

Securing Systems for Containers – Design & Fix Fittings.

Shiptype application:
Containerships
Multi-Purpose Vessels
General Cargo Ships

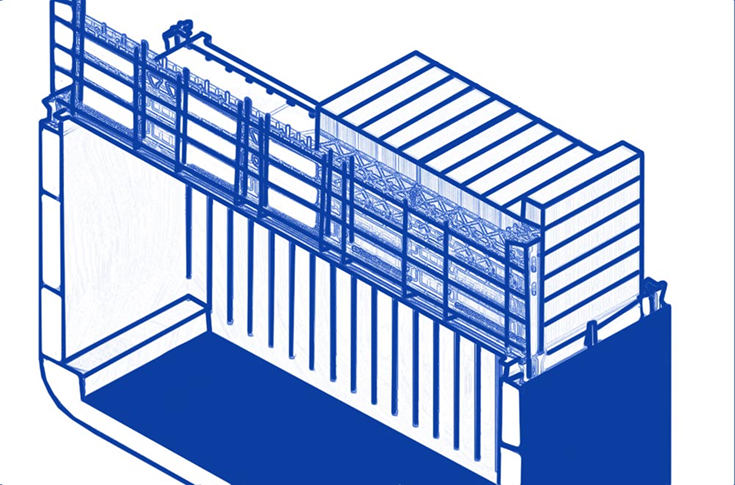

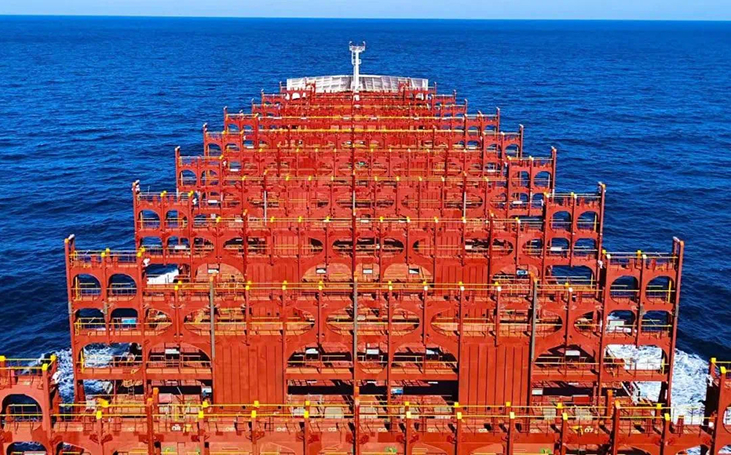

Design of ship structures for container securing such as:

• Lashing bridge
• Cellguides
• Deck Stanchions

FIX CONTAINER FITTINGS

Fixed parts to secure containers, welded on hatch covers, deck and in cargo hold.
